General Description
CE5HL5XXC1Q is the high input very low IQ 300mA LDO with enable function that operates from 1.8V~12V, is designed specifically for portable battery-powered applications which require ultra-low quiescent current. The very-low consumption of type 2.8µA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications.
CE5HL5XXC1Q offered SOT89-5 packageand operates over an ambient temperature range of -40°C to 125°C.
Specification
Sample
Features
- Wide Input Voltage Range from 3.0V to 40V
- Up to 300mA Load Current
- Very Low IQ is 2.8µA Typical
- Fixed Output Voltage are 1.8V, 3.0V, 3.3V, 3.6V, 5.0V, 6.0V, 7.0V, 8.0V, 9.0V, 12V, etc.
- Low Dropout is 900mV at 300mA Load @VOUT = 5.0V
- Excellent Load/Line Transient Response
- High Ripple Rejection: 52dB at 1KHz
- Automotive AEC-Q100 Grade 1 Qualified
- Latch-up Performance Exceeds ±200mA per JEDEC JESD78F

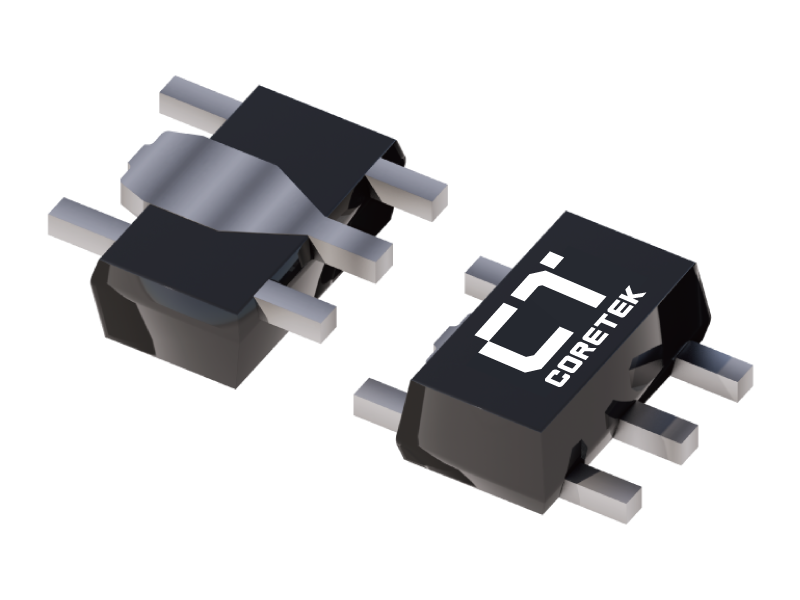

- Package : SOT89-5
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | CE5HL5XXC1Q | 2026-01-19 |
