General Description
CE5HL2XXM1Q is the high input very low IQ LDO with enable function, is designed specifically for various automotive power supply. The very-low consumption of type 2.5µA ensures long power life and dynamic transient boost feature improves device transient response for automotive precision use applications.
CE5HL2XXM1Q offered ESOP8 package has good heat dissipation capability.
Specification
Sample
Features
- Wide Input Voltage Range from 2.5V to 36V
- Up to 300mA Load Current
- Very Low IQ is 2.5µA Typical
- Fixed Output Voltage are 1.8V,2.5V,3.0V,3.3V,3.6V,5.0V,etc
- Low Dropout is 1000mV at 300mA Load @VOUT = 3.3V
- Excellent Load/Line Transient Response
- High PSRR and Low Noise
- Good Heat Dissipation Performance
- Automotive AEC-Q100 Grade 1 Qualified
- Latch-up Performance Exceeds ±200mA per JEDEC JESD78F

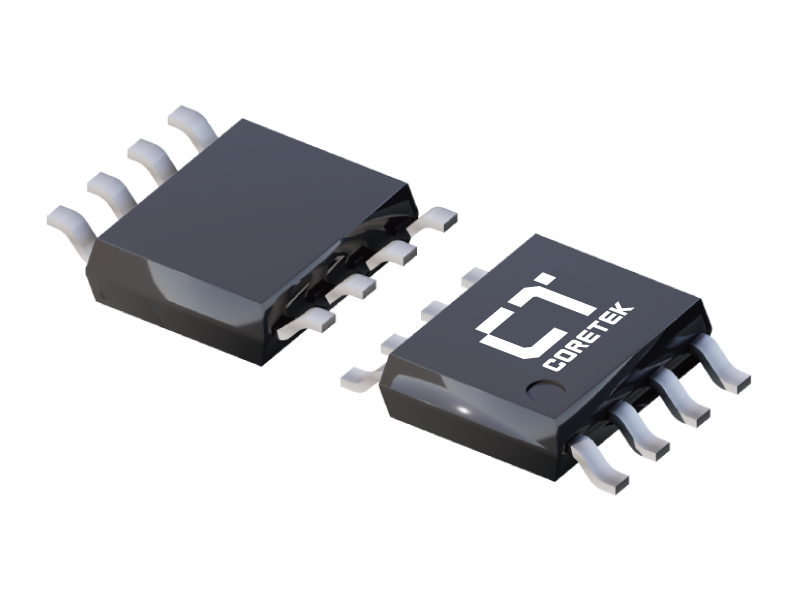

- Package : ESOP8 (4.9mm × 6.0mm)
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | CE5HL2XXM1Q | 2026-01-19 |
