General Description
The CE61LH41ADJYQ is a low dropout with 150mA load ability with enable function LDO. It operates from 3V ~ 40V. The quiescent current is 5.5uA with no load. The devices feature integrated short-circuit and over-current protection. They are quite suitable for standby microprocessor control-unit systems, especially in automotive applications.

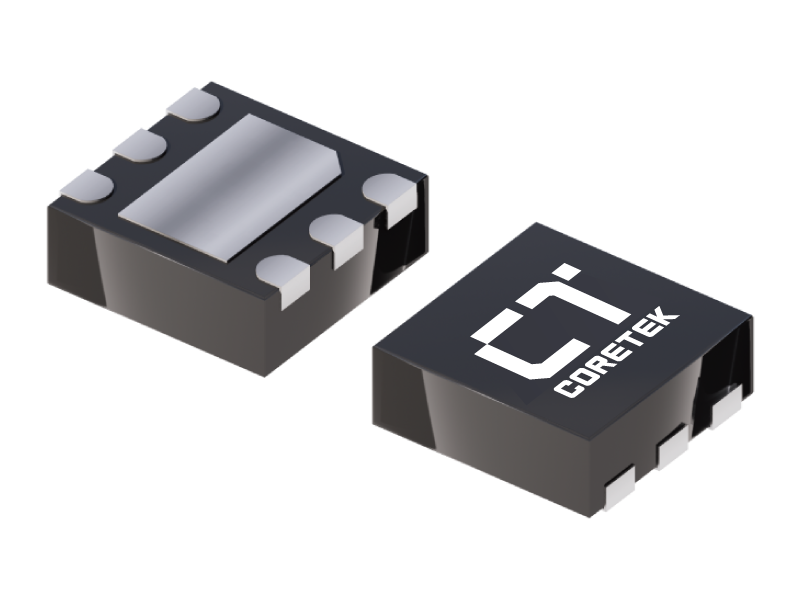

CE61LH41ADJYQ is available in the DNF6(2×2) packageand support ambient temperature Range of -40°C to 125°C.
Specification
Sample
Features
- Input Voltage Range from 3V to 40V
- 150mA Load Current
- IQ is 5.5µA Typical
- ADJ Output Voltage Range 1.8~15V
- Low Dropout is 220mV at 150mA Load@ VOUT = 5V
- Over-Temperature Protection
- Current-Limit Protection
- Automotive AEC-Q100 Grade 1 Qualified
- Latch-up Performance Exceeds ±200mA per JEDEC JESD78F
- Package : DNF6 (2mm × 2mm)
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | CE61LH41ADJYQ | 2026-01-20 |
