General Description
CE5HL5XXFQ is the high input very low IQ 300mA LDO , The very-low consumption of type 2.8µA ensures long battery life and dynamic transient boost feature improves device transient response for automotive device applications.

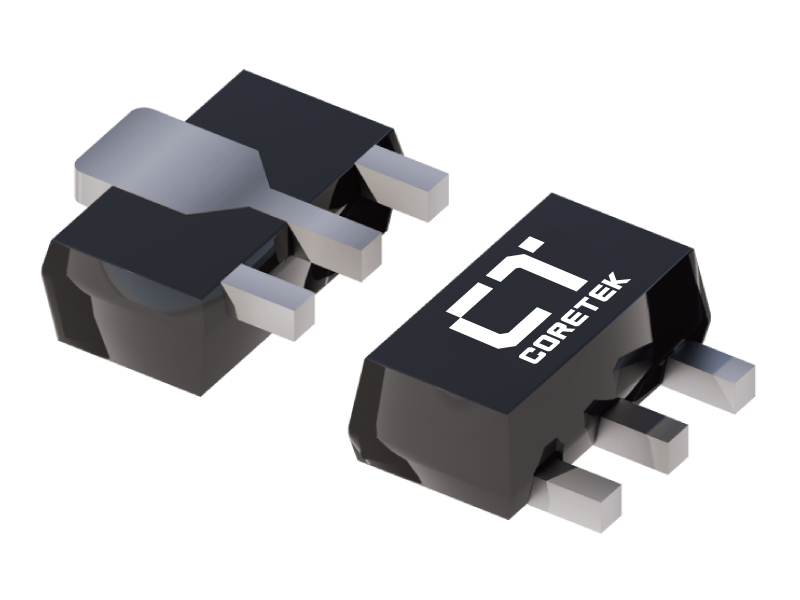

CE5HL5XXFQ offered SOT89-3 package and operates over an ambient temperature range of -40°C to 125°C.
Specification
Sample
Features
- Wide input voltage range from 3.0V to 40V
- Up to 300mA Load Current
- Very low IQ is 2.8µA typical
- Fixed Output Voltage are 3.0V,3.3V,3.6V,5.0V,6.0V,7.0V,8.0V,9.0V,12V, etc
- Low dropout is 900mV at 300mA Load @VOUT=5.0V
- Excellent load/line transient response
- High Ripple Rejection: 52dB at 1KHz
- Automotive AEC-Q100 Grade 1 Qualified
- Ambient temperature range of -40°C to 125°C.
- Package : SOT89-3
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | CE5HL5XXFQ | 2026-01-19 |
